CMSIS-DAP 2.0 Debugger (XS)
HomeStore

CMSIS-DAP 2.0 Debugger (XS)

CMSIS-DAP 2.0 Debugger (XS)

Main Product Features:

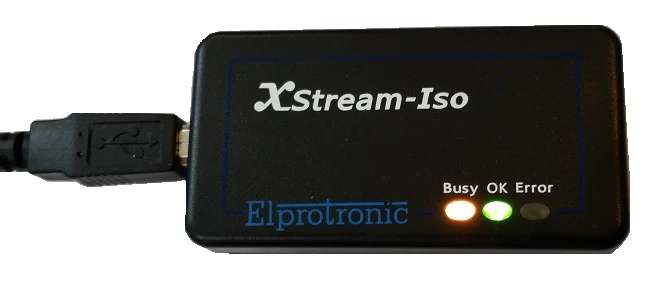

  • Embedded ARM Debugger. XStream-Iso hardware adapter.
  • Supports JTAG, and SWD communication.Ā
  • Programmable communication clockĀ up to 20 MHz, effective throughput up to 1 MBytes/s.
  • SWO tracing capability with SWD communication option. SWO speed up to 12.5 Mbits/s (UART), and 32 kB overflow buffer.
  • Galvanic Isolation between computer and target (XStream-Iso up to 2.5kV)
  • Power supply from adapter available, up to 200mA.
  • Customizable Vcc from 1.7 to 4.0V on XStream-Iso adapters (1.2 to 4.0V on XStreamPro-Iso adapters).

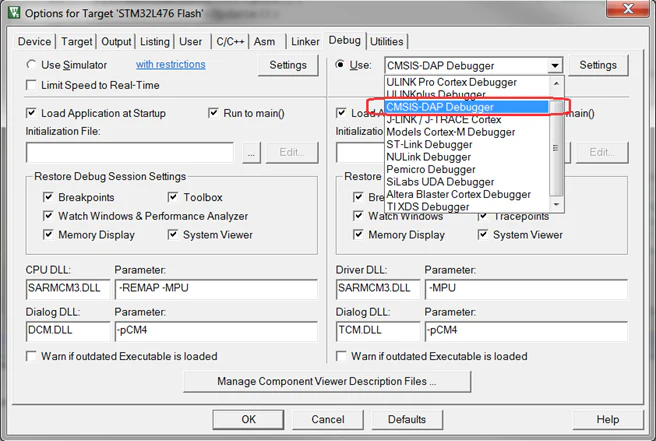

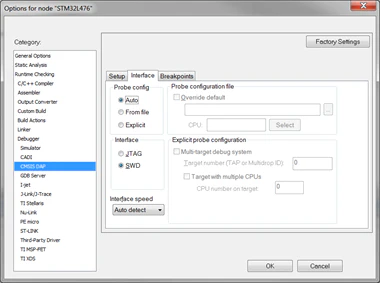

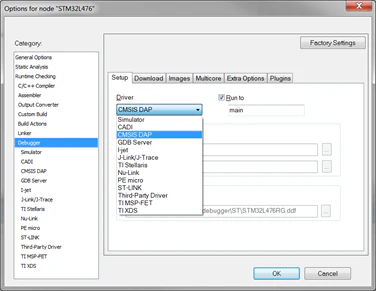

  • Supports any CMSIS-DAP 2.0 capable IDE. Tested on latest IAR EWARM.
  • This feature is also available to run on any XStream-Iso or XStreamPro-Iso ARM programmer (FP/GP-ARM or X).

    Software Package:

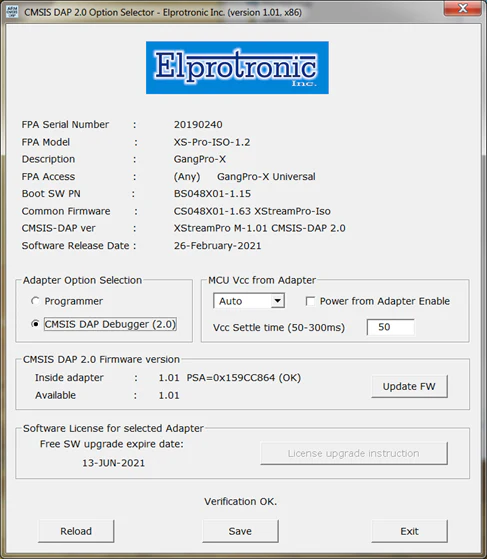

    • Easy to use Setup GUI runs onĀ Windows(TM) XP, 7, 8, 10, and 11.
    • Download installer for:Ā Windows
    • User Guide
    Package contains:
    • XStream-Iso 1.1 programming adapter,
    • USB cable,
    • FPA to ARM 14-pin to 20-pin/10-pin standard adapter and ribbon cable,
    • One Year Warranty,
    • Unlimited time software usage license, no limit on number of programmed devices,
    • No code size limitations,
    • One Year free software updates,
    • Software Update License Renewal is optional (only needed for updates to run newer software version after one year).Ā  Already used software version will run indefinitely, with no need for license renewal.
    Warranty and Refund & Return Policy:
    $74.70

    Original: $249.00

    -70%
    CMSIS-DAP 2.0 Debugger (XS)ā€”

    $249.00

    $74.70

    More Images

    CMSIS-DAP 2.0 Debugger (XS) - Image 2
    CMSIS-DAP 2.0 Debugger (XS) - Image 3
    CMSIS-DAP 2.0 Debugger (XS) - Image 4
    CMSIS-DAP 2.0 Debugger (XS) - Image 5
    CMSIS-DAP 2.0 Debugger (XS) - Image 6
    CMSIS-DAP 2.0 Debugger (XS) - Image 7
    CMSIS-DAP 2.0 Debugger (XS) - Image 8
    CMSIS-DAP 2.0 Debugger (XS) - Image 9
    CMSIS-DAP 2.0 Debugger (XS) - Image 10

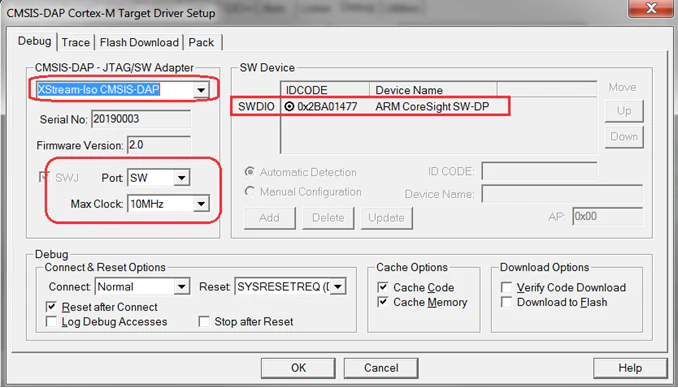

    CMSIS-DAP 2.0 Debugger (XS) - Image 11
